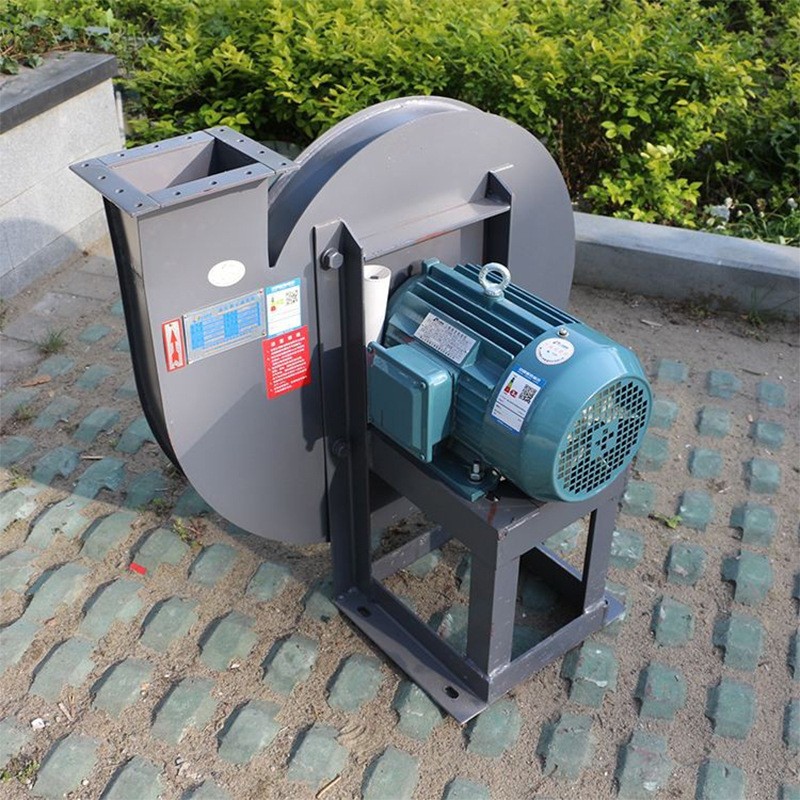

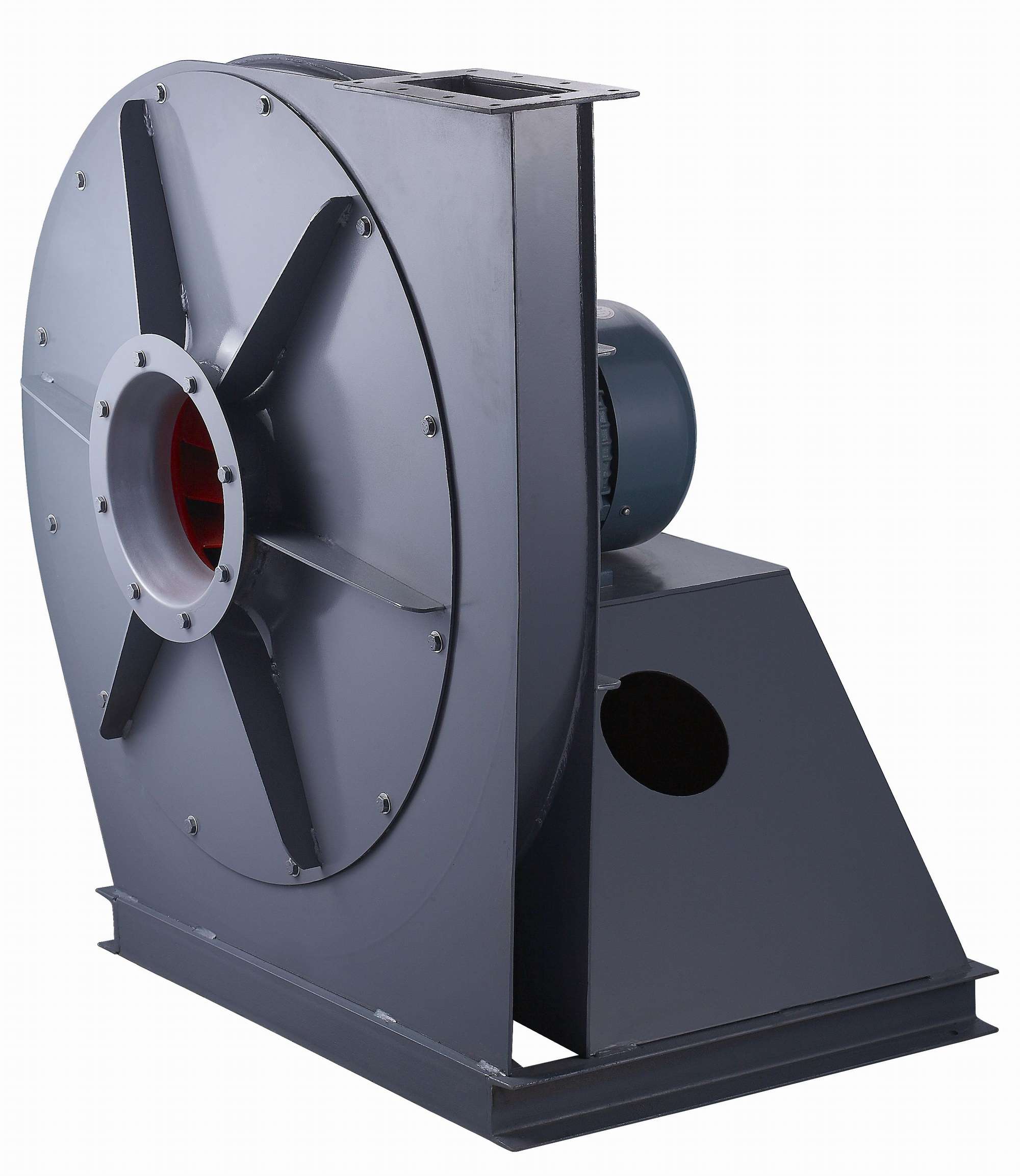

9-12 high pressure centrifugal fan
Model: 9-12 series
Feature:
1. low noise
2.large air volume
3.good performance
4.wide use
9-12(A) type is the professional fans designed for Cupola furnace and carton machine. The air transferred shall not contain any corrosive, not spontaneous combustion and adhesive material dust and grain and the concentration shall not exceed 150mg/m3, with the temperature no higher than 80°c.
| 9-12 high pressure centrifugal fan | ||||
| Model | （KW） | （r/min） | （m³/h） | （Pa ) |
| 5A | 5.5 | 2900 | 1000～2680 | 4800～3239 |
| 7.5 | 2900 | 2700～3400 | 3100～2065 | |
| 6.3A | 7.5 | 2900 | 1000～1875 | 8000～8300 |
| 11 | 2930 | 1925～2750 | 8280～7850 | |
| 15 | 2930 | 2800～4000 | 7830～6100 | |
| 6.8A | 15 | 2930 | 1667～3600 | 9880～9420 |
| 18.5 | 2930 | 3667～4567 | 9350～8400 | |
| 22 | 2930 | 4600～5500 | 8350～6760 | |
| 7.1A | 15 | 2930 | 1201～2978 | 10515～10821 |
| 18.5 | 2930 | 3566～4148 | 10570～10103 | |
| 30 | 2950 | 4818～6344 | 9490～6933 | |
| 7.7A | 18.5 | 2930 | 1532～2983 | 12367～12953 |
| 37 | 2950 | 3798～6697 | 12727～10520 | |
| 45 | 2970 | 7314～8092 | 9632～8154 | |
MATERIAL:CARBON STEEL, ALUMINUM,GALVANIZED SHEET, STAINLESS STEEL #304 #414, COPPER
It is widely used for ventilation in warehouses, workshops and entertainment places.
① Production process
BLANKING, LASER BLANKING, ASSEMBLY, WELDING, FINAL ASSEMBLY, TESTING
② Package & Shipping
Small size products - carton/wooden frame packaging, large size products are packaged with stretch film
③ After-sales Service
One year after leaving the factory, it is fully guaranteed for non-human damage. Improper use and operation will cause damage to charge the cost price of parts for maintenance. After one year beyond the warranty period, only the cost of replacement parts will be charged, and the 40HQ large container will be shipped with the value of the container 1% of the spare parts are used as after-sale spare parts, and the parts are purchased separately for orders less than 40HQ containers.
